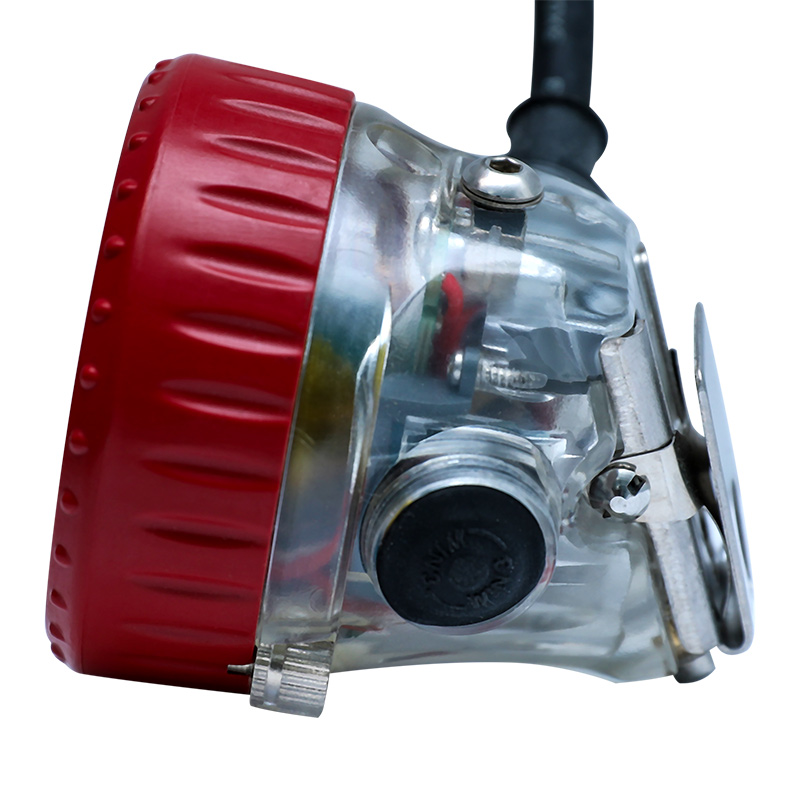

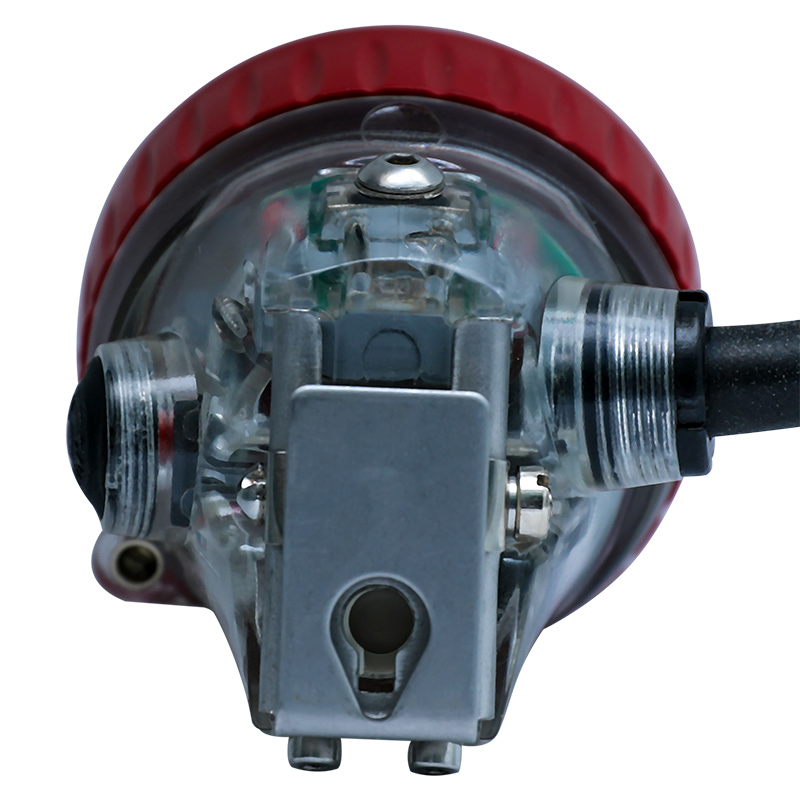

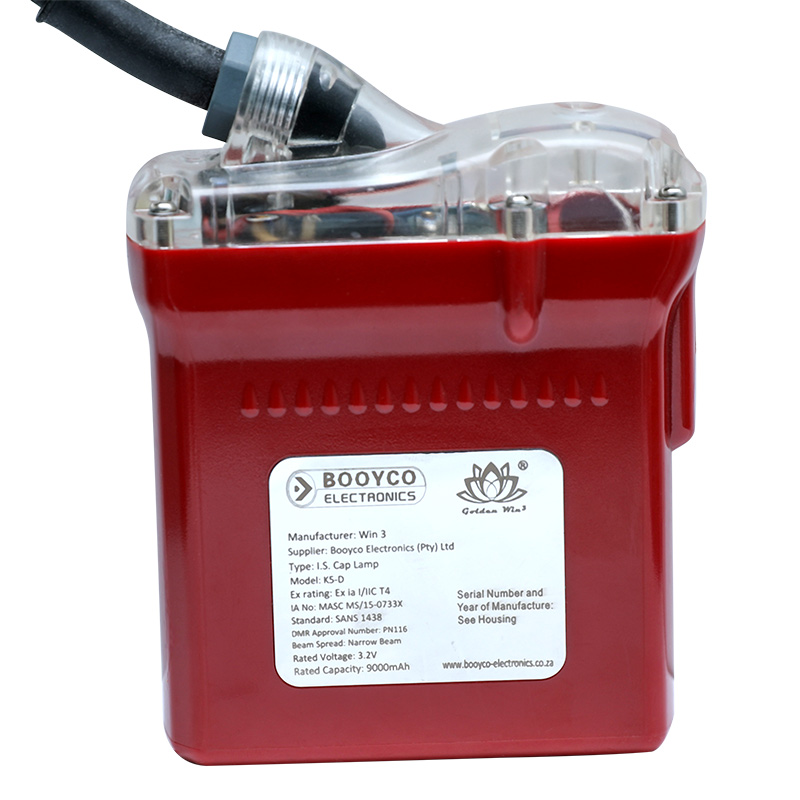

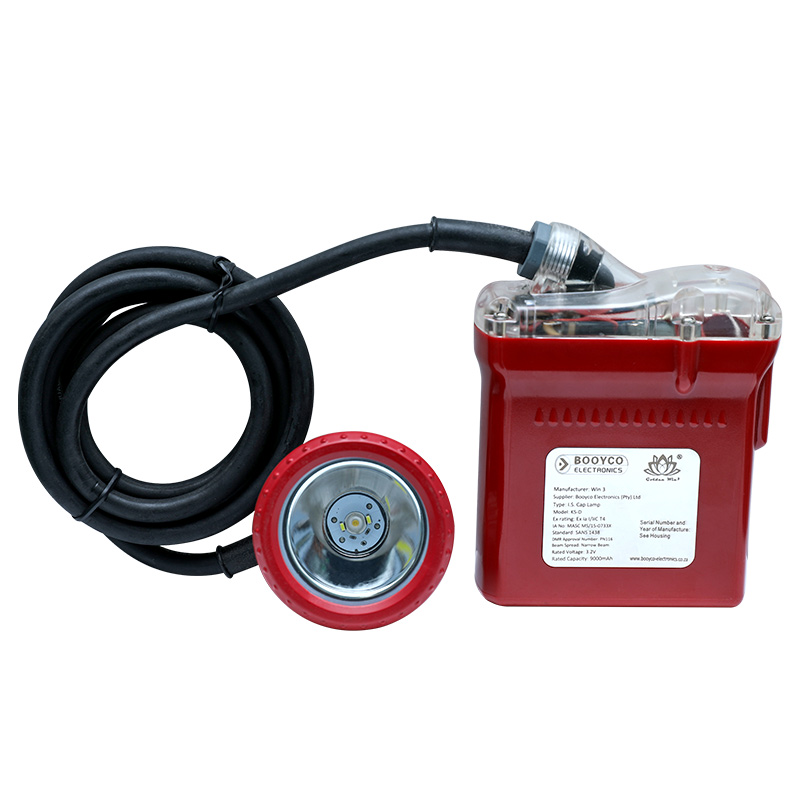

K5-D mining cap lamp Maroon color

Large capacity: With the high quality Li-on battery, this miners lamp can provides a long time illumination at constant current discharge with primary Light Autonomy>30 hours, secondary light>60hours

The high quality Osram LED has a lifespan of more than 30,000 hours and the phosphate technology battery more than 1000 cycles.

16 month warranty against any defective components or workmanship brings the end user low cost of ownership

 With brilliant electronic design and superior housing material, the Win 3 mining cap lamps offers exceptional safety and peace of mind while working under complex environment

Global compatible TAG Ready System suitable for any Tracking System or Access control.
  • det02
Technical points
Product net weight (kg)
Packing Quantity (pcs)
Outer box size (mm)
Scenes to be used
Rated capacity: LiFe PO4 9Ah 0.87 30 515*300*635 It is specially researched and developed for mining industry, but it can also be used in a variety of scenes and situations, such as tunneling project, outdoor sports, adventure and outdoor work
Discharge Time: primary light>30h
Secondary Light>60h
Charge: voltage 5.0+/-0.5V
current 850+/-50mA
charge time: 13-15h
LUX: 3.0V+/-0.1V
> 10000LUX
Secondary light Luminous flux Constant current discharge, brightness not change during operation
14.0-15.0LM
Lifespan: Φe: 45-50MW
cycle life up than 1000-1200  times
Enviromental temperature/humidity: LED10,000h
Operating temperature -20~+40°C,
Storage/transport temperature -20~+60°
Storage/transport humidity 10~60%
Ingress Protection: IP 68
