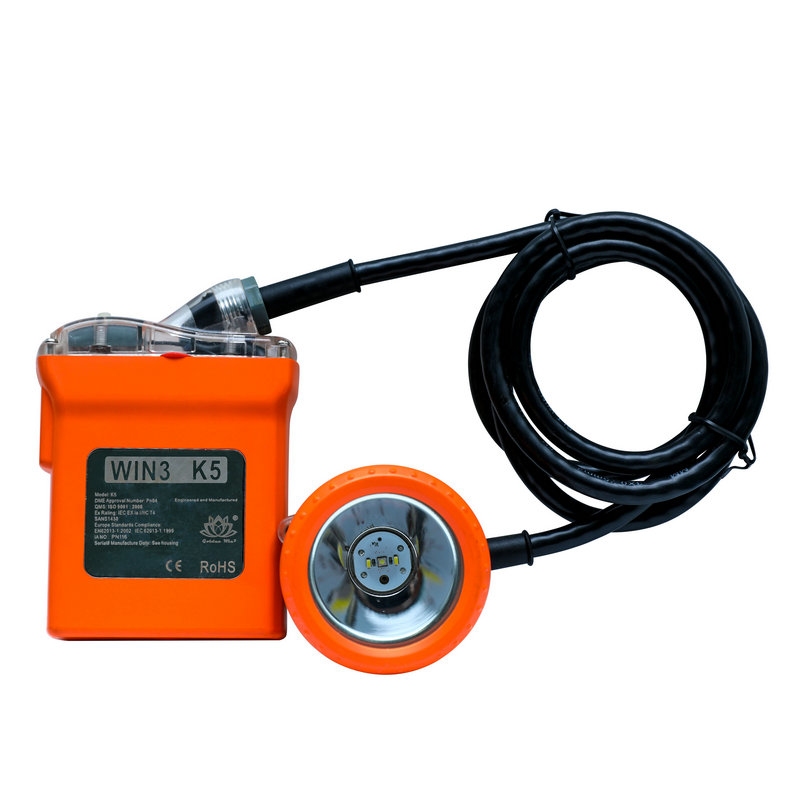

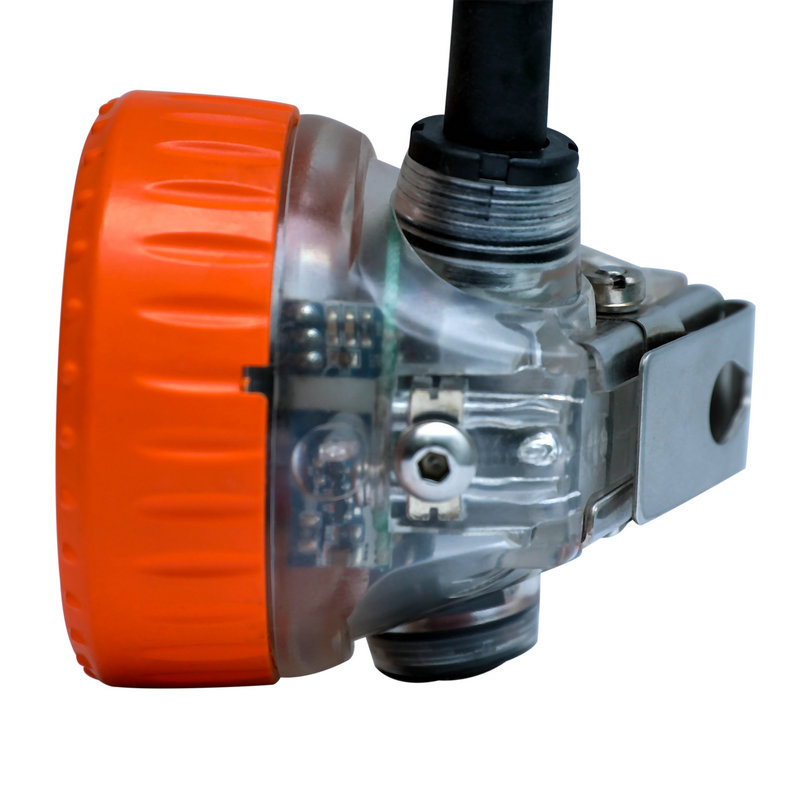

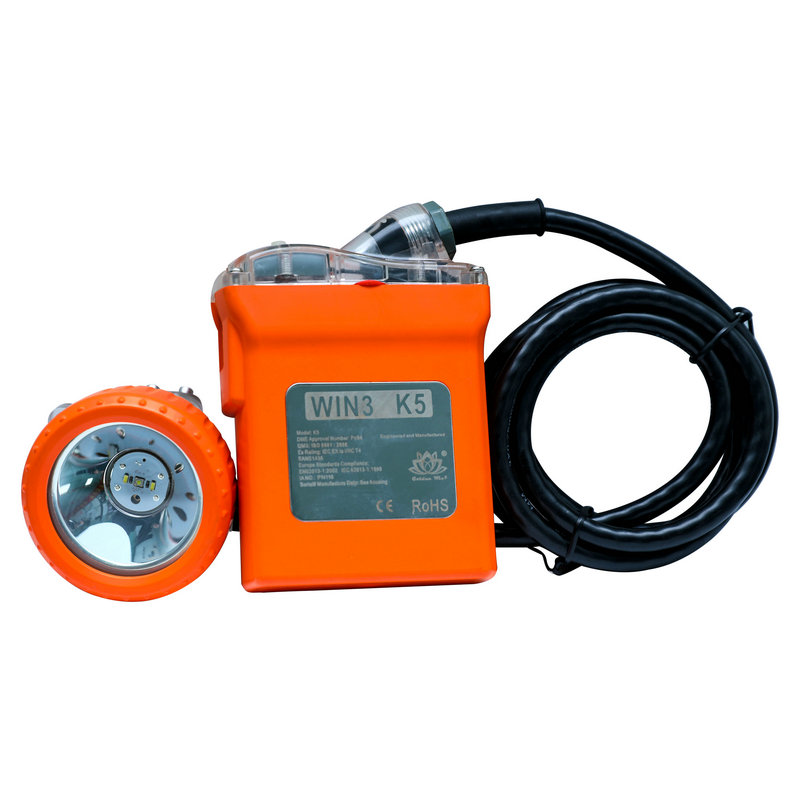

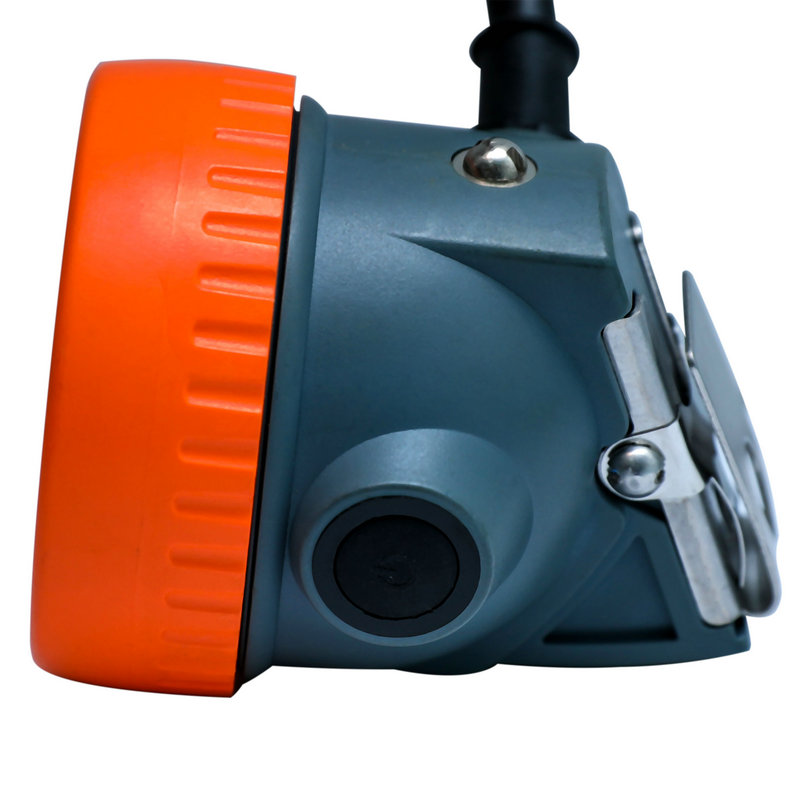

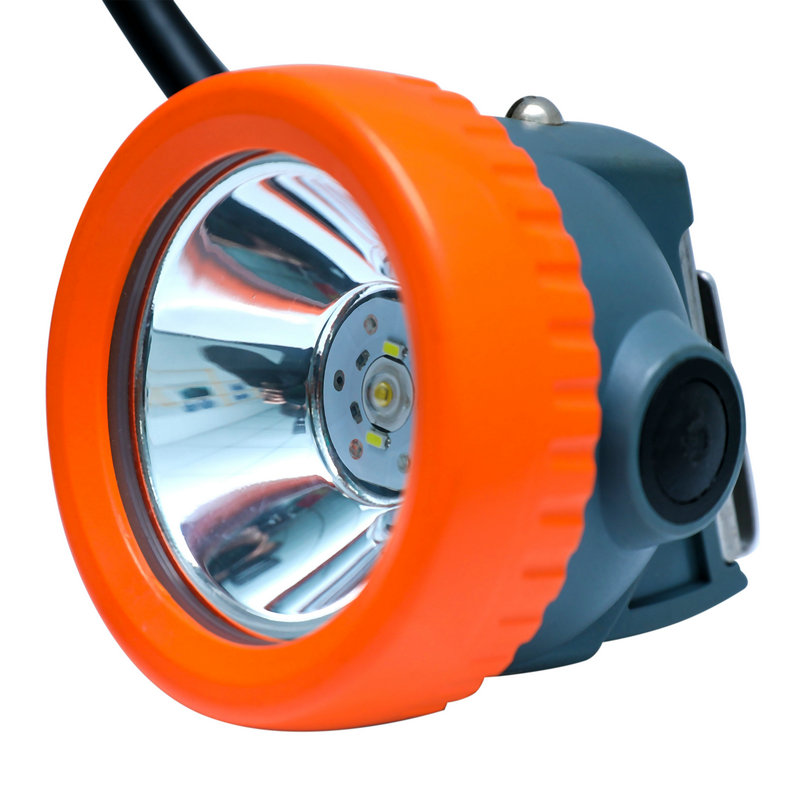

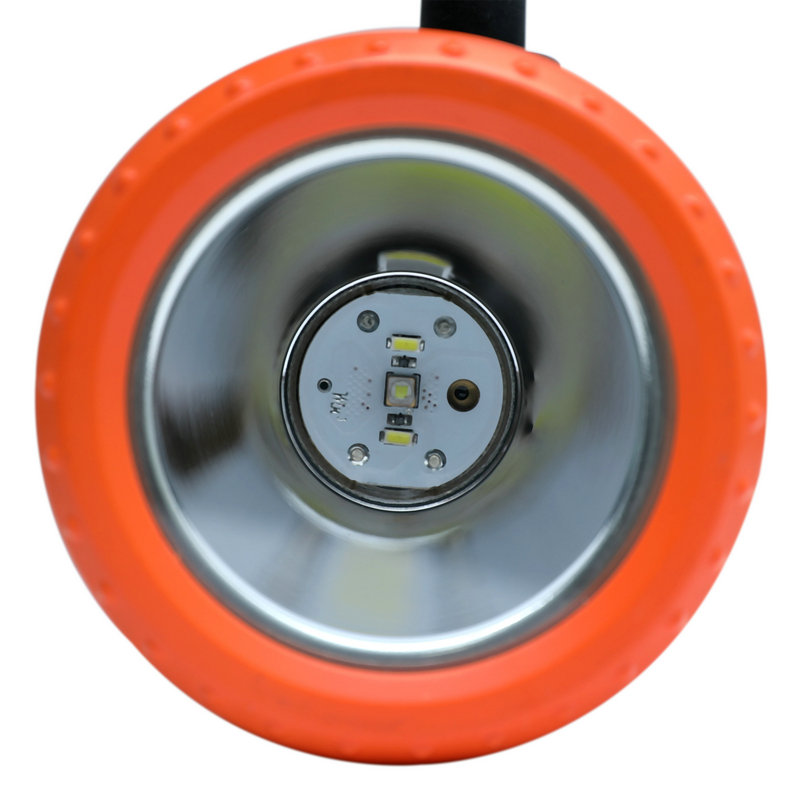

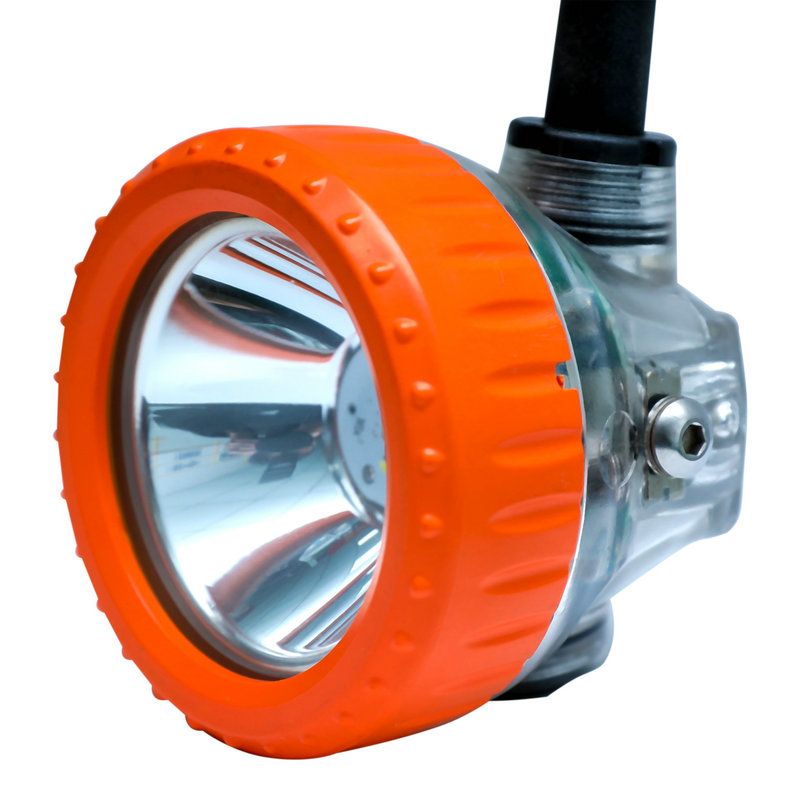

High performance Win3 K5 mining cap lamp with tag ready system

Large capacity: With the high quality Li-on battery, this miners lamp can provides a long time illumination at constant current discharge with primary Light Autonomy>18 hours, secondary light>48 hours

The high quality ED has a lifespan of more than 10,000 hours and the phosphate technology battery more than 1000 cycles.
16 month warranty against any defective components or workmanship brings the end user low cost of ownership

With brilliant electronic design and superior housing material, the Win3 mining cap lamp range offers exceptional safety and peace of mind while working under explosive and flammable environment

Global compatible TAG Ready System suitable for any Tracking System or Access control.
  • det02
Technical points
Product net weight (kg)
Packing Quantity (pcs)
Outer box size (mm)
Scenes to be used
Rated capacity:
Li-Ion battery 6.6Ah
0.6
30
515*300*635
The K5 cap lamp is not only for miners operating lamps, but can also be used in a variety of scenes and situations, such as outdoors sports, adventure, and outdoors work
Discharge Time:
primary light>18h
Secondary Light>48h
Charge:
voltage 5.0+/-0.5V
current 800+/-50mA
charge time<10h
LUX:
>10000 LUX
Constant current discharge, brightness not change during operation
Secondary light Luminous flux
14.0-15.0LM
Φe: 45-50MW
Lifespan:
cycle life up than 800-1000 times
LED10,000h
Environmental temperature/humidity:
Operating temperature -20~+40°C,
Storage/transport temperature -20~+60°C
Storage/transport humidity 10~80%
Ingress Protection:
IP 68
