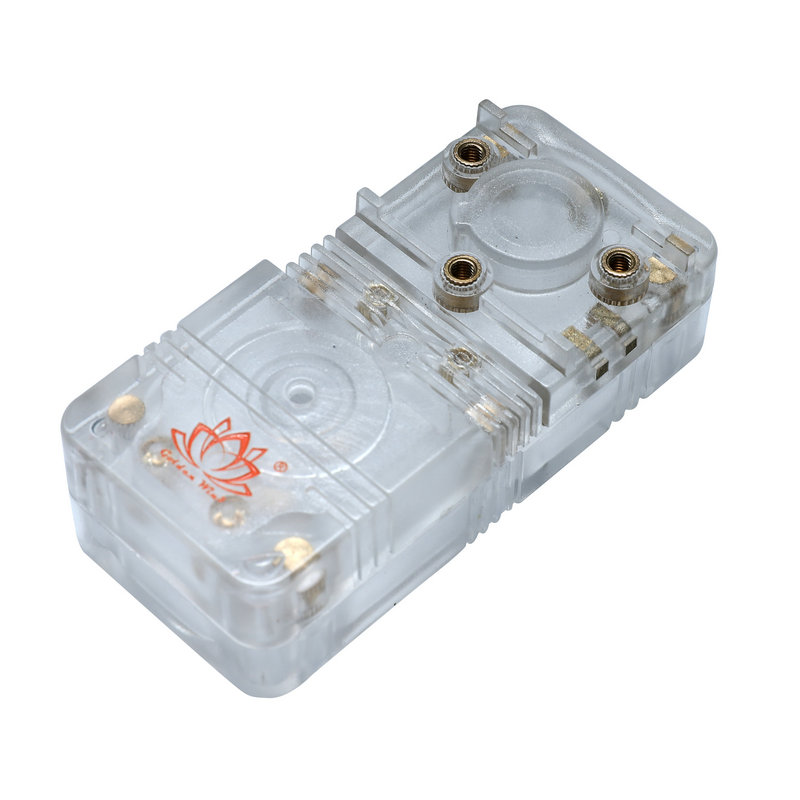

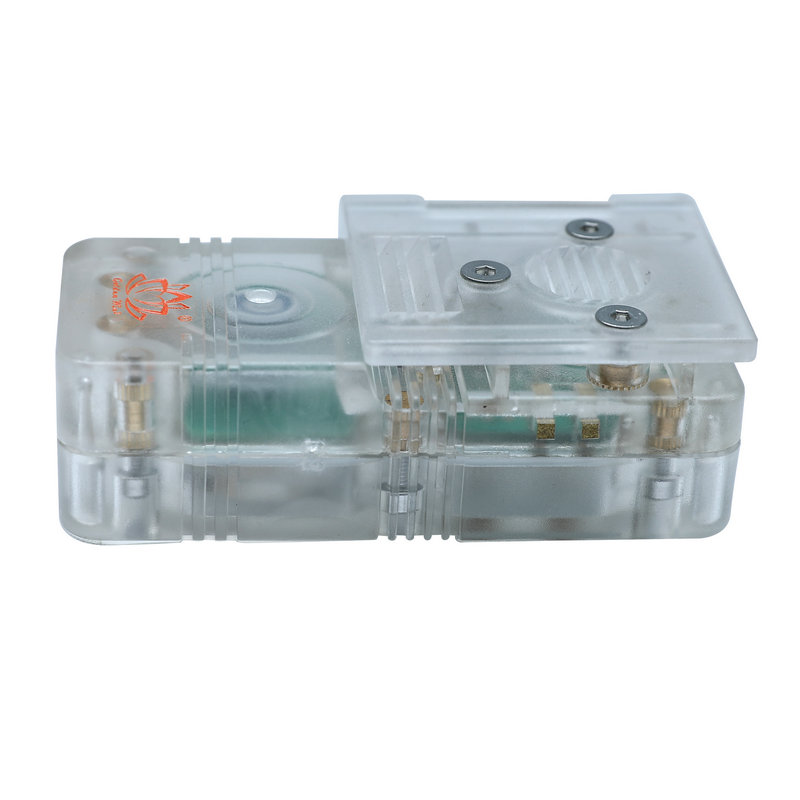

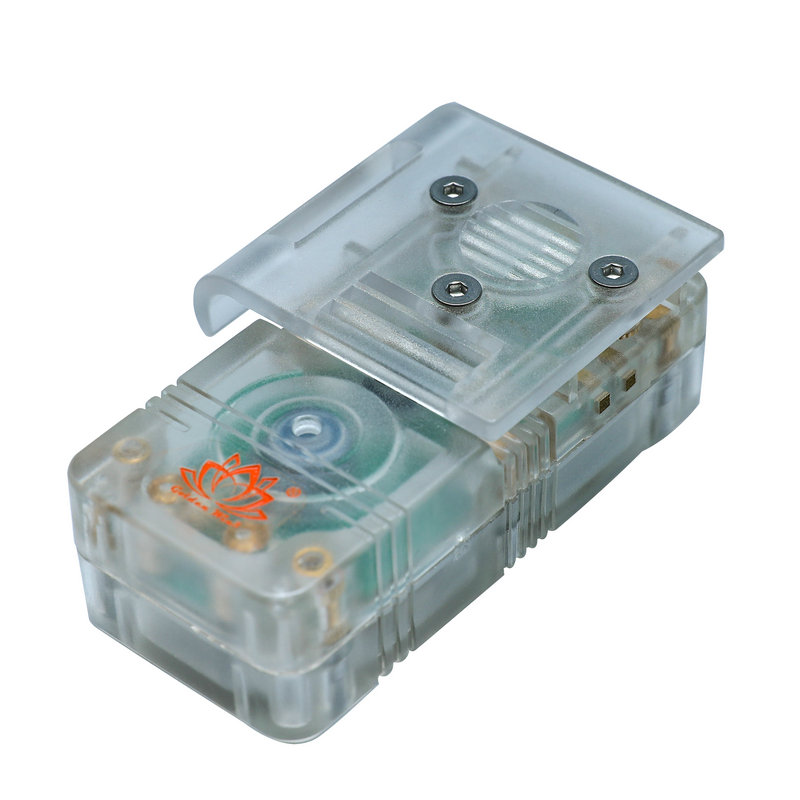

Win3 Temperature Monitor Instrument

Health and safety is the first priorty for ming opeartion, while the working environments are often very hot and humid, which brings big risk of heat stress and may cause the body to become fatigued and distressed,

Win3 pocket temperature monitor can provide continuous temperature & relative humidity measuring and alert miners  for danger and Extreme danger by audlible alarm, it has four visible signals also,  Green – Safe, Yellow – Caution,  Red – Danger, Purple – Extreme Danger which will help miners escape from the dangerous envrionment in time.

Features
Continuous Temperature & Relative Humidity
Measurement
Data Logging with USB Downloading
(25,000 Records)
Colour Coded Alarm Indication
Green – Safe, Yellow – Caution,
Red – Danger, Purple – Extreme Danger
Audible Alarm for Danger and Extreme Danger
Internal Coin Cell Battery
1 Year Battery Life – Exposure Dependant
  • det02
Technical points
Product net weight (kg)
Packing quantity (pcs)
Outer box size (inch)
Scenes to be used
Sensing elements  Temperature Relative Humidity 0.067 Win 3 Portable heat stress monitor is designed to quickly and accurately evaluate potential environmental  heat stress/humidity.The instrument is intended for use as a continuous measuring device for portable and handheld
applications
Measuring range Temperature -40 oC to +120 Oc
Humidity 0% to 100% rH
Measuring principal Polymer dielectric planar capacitor structure
Response time 10 to 15 seconds for step change
Accuracy Temperature 0 oC to 60 oC +/- 1 oC
Humidity 20% to 80% rH +/- 3.5% rH else +/- 5% rH
Min & max pressure  - 10 KPa to + 50 Kpa
Operating temperature  -10 to + 40oC
Storage temperature 0 to +20oC
Power source Battery 3Volt 1 Amp Lithium ion non rechargeable
Operational time >  6 months continuous
Dimensions 76 x 35 x 26 (mm)
Housing Polycarbonate
Warranty * 1 (one) year on all electronic parts and workmanship
* 6 (six) months on battery
Data storage 92Kbyte Flash
Record memory > 30 days rotating memory @ ~2 minute intervals continuous
Approval SANS/IEC 60079 Part 0: 2005
SANS/IEC 60079 Part 11: 2007
Approval
SANS/IEC 60079 Part 0: 2005
SANS/IEC 60079 Part 11: 2007
