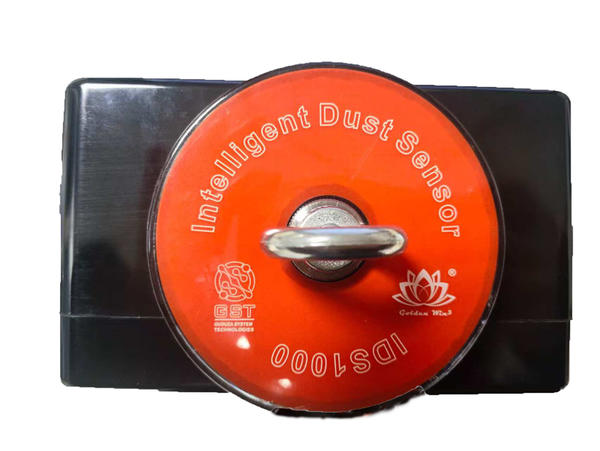

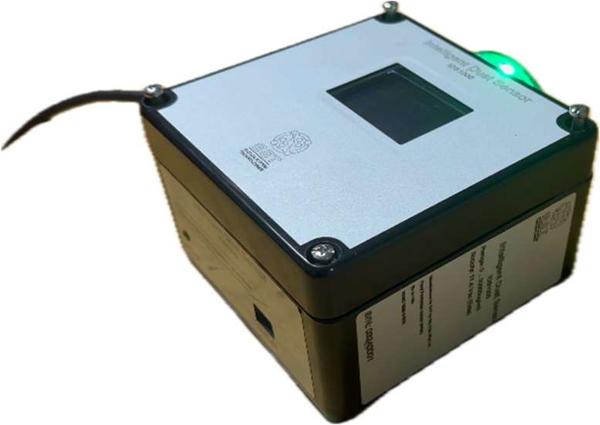

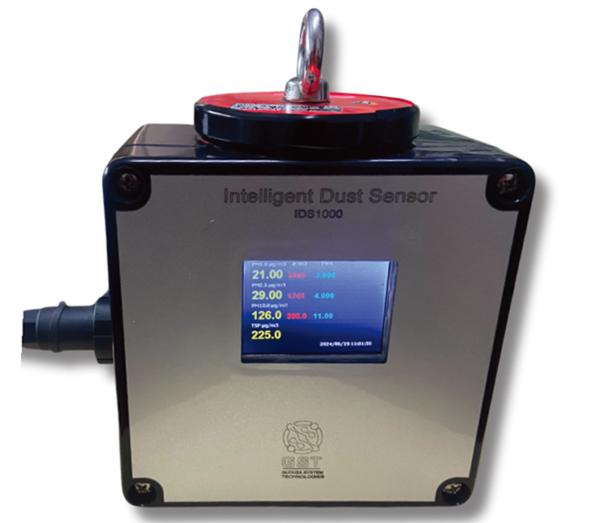

Intelligent Dust Sensor

Compact Design with expandable "Plug and Flay" sensing capability.

Measure dust particle concentrations of PM1.0,PM2.5,PM10.0 and TSP

Environmental Parameters Up to 16 environmental parameters can be measured and displayed, including gases (toxic,flammable and VOC), temperature,humidity,barometric pressure, etc.

Expansion Cards Analogue Expansion Card available.Can generate4-20mA signals for all sensors fitted.Digital Expension Card available.Can have relayoutput signals for each sensor with multipleswitching confgurations.

Large Colour Graphic LCD

Visual AlarmColour coded visual alarms wit

Data Storage On-board Data Storage with 2 Gbyte SD Card. Cancontinue to record in off-line conditions.

  • Details
Gas Types Flammable Toxic Oxygen
Sensors and measuring range 0-100% LEL 0-500ppm 0-25% by volume
Measuring principal Catalytic Combustion/IR Electro-chemical Electro-chemical
Calibration gasses % up to 50% full-scale ppm = 20-200 Bottled / Fresh Air
Response time T90 Less than 15 seconds Less than 35 seconds Less than 15 sec
Resolution 0.10% < 6ppm 0.10%
Long term drift ± 0.1% 2% Full scale/month 2% Full scale/month
Min & max pressure -10 KPa to + 50 KPa Ambient ± 10% Ambient ± 10%
Particle Sizes PM1.0 PM2.5 PM10.0 TSP
Measuring range All sizes 0.0μg/m³ - 30,000μg/m³
Measuring principal Laser scattering
Response time Less than 2 seconds (8 seconds warmup)
Accuracy PM1.0/PM2.5 ≤50μg/m³: ±5μg/m³; 50-1000μg/m³: ±10%
Accuracy PM10 ≤100μg/m³: ±15μg/m³; 100-1000μg/m³: ±15% of Reading
Conditions (Accuracy) -20-70°C, 50±10% RH

GOLDEN WIN3

Who we are?

GOLDEN WIN3 is wholesale Intelligent Dust Sensors Manufacturers and OEM Intelligent Dust Sensors Factory., we established the technology R & D center of the alliance of South Africa, Shenzhen (China's Special Economic Zone, the most developed electronic industry area) and Huzhou. Our technicians have over 25 years of experience in cooperation with underground workers on average, they are specialized in development and research of the integration of energy saving LED technology with intelligent tag and power supply life span extension technology. We are dedicated to providing global mining and the workers who operate in hazardous environment with working lighting, environmental detection device and the solutions of health monitoring, intelligent management and prevention as well as the early warning systems for High risk environmental workers.

We Provide

High efficiency and energy saving working lighting equipment

Environmental safety and health monitoring device

Mining safety early warning system solution

Spare parts

Battery/Power supply

Our qualification certification

In addition to the core technician team, we also have a production team that full of gratitude, honesty, creation, utility, sharing spirit that faithful to our company and customers. This team pays special attention in production, quality control, sales and after sale service, fully and strictly implementing the China and international qualification system like IECEX 、ATEX、ISO9001:2008、MA、DME and other CE and quality directives.
